8 POLE HVC TYPE
Frame Type-L
Utility Power : 3phase × 60Hz/50Hz × Any Voltage
|
Model
|
output (Kw)
|
Horse Power(Hp)
|
ExcitingForce(Kg)
|
Rpm(60/50Hz)
|
|---|---|---|---|---|
|
HVC-048-S
|
0.4
|
1/2
|
500
|
900/750
|
|
HVC-0758-M
|
0.75
|
1
|
1000
|
900/750
|
|
HVC-118-M
|
1.1
|
1.5
|
1500
|
900/750
|
|
HVC-158-L
|
1.5
|
2
|
2000
|
900/750
|
|
HVC-228-L
|
2.2
|
3
|
3000
|
900/750
|
|
HVC-378-L
|
3.7
|
5
|
5000
|
900/750
|
|
HVC-558-L
|
5.5
|
7.5
|
7500
|
900/750
|
|
HVC-758-L
|
7.5
|
10
|
10000
|
900/750
|
|

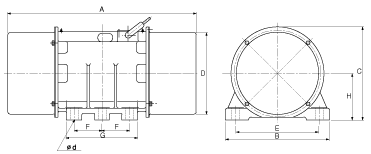

Model
|
Dimensions
|
Weight (Kg)
|
||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
Ø d
|
||
|
HVC-048-S
|
474
|
323
|
275 |
Ø236
|
260
|
150
|
242
|
135
|
26X4
|
75
|
|
HVC-0758-M
|
445
|
360
|
371
|
Ø326
|
240
|
130
|
200
|
180
|
32X4
|
96
|
|
HVC-118-M
|
445
|
360
|
371
|
Ø326
|
260
|
130
|
200
|
180
|
32X4
|
100
|
|
HVC-158-L
|
730
|
410
|
373
|
Ø325
|
290
|
110X2
|
300
|
178
|
32X6
|
172
|
|
HVC-228-L
|
730
|
410
|
373
|
Ø325
|
290
|
110X2
|
300
|
178
|
32X6
|
248
|
|
HVC-378-L
|
883
|
490
|
436
|
Ø381
|
340
|
128X2
|
334
|
218
|
38X6
|
353
|
|
HVC-558-L
|
883
|
490
|
436
|
Ø381
|
340
|
128X2
|
334
|
218
|
38X6
|
485
|
|
HVC-558-L
|
883
|
490
|
436
|
Ø381
|
390
|
128X2
|
334
|
218
|
38X6
|
625
|
